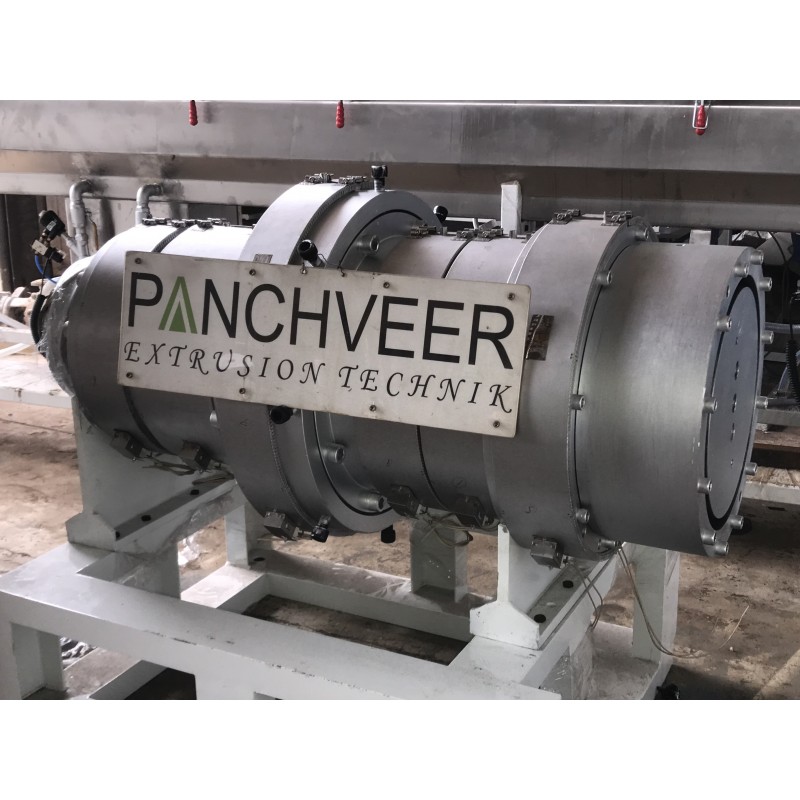

HDPE Pipe Die Head

HDPE Pipe Die Head

HDPE Pipe Die Head

HDPE Pipe Die Head

HDPE Pipe Die Head

Head For HDPE Pipe & PPR Pipe

(Single Layer, Two Layer and Three Layer up to 315 Dia)

Features :

Low pressure build up & Low melt temp. even with high throughput.
Good homogenization, Excellent wall thickness
Constant processing charasteristic over the full range of material
Consistent product quality for all pipe size

Models	32-PVSi	63-PVSi	125-PVSi	250-PVSi	400-PVSi	500-PVSi	630-PVSi
Throughput(Kg/HR Max)	350	450	600	1000	1000	1000	1500
Pipe Size Range	10-32	16-63	20-125	50-250	75-400	90-500	250-630

Single layer,Two Layer and Three Layer HDPE & PVC Die Head.

Models	125-PSi	160-PSi	200-PSi	315-PSi
Throughput(Kg/HR Max)	450	450	450	700
Pipe Size Range	20-125	32-160	50-200	63-315
