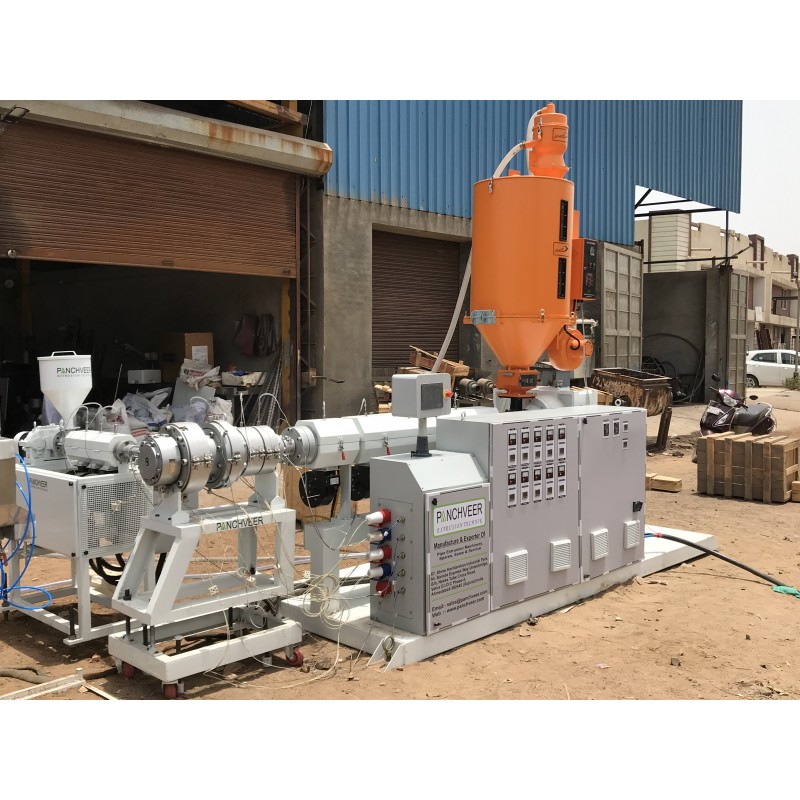

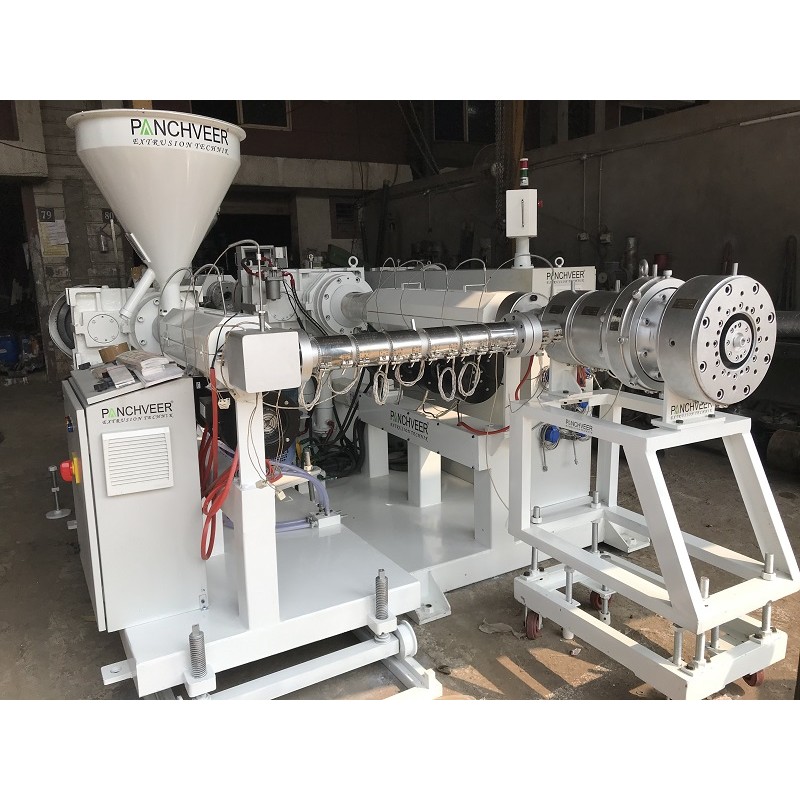

HDPE/PPR Pipe Single Screw Extruder

Inquiry Now

Features :

  • Barrier Screw high homogeneous plasticizing.
  • Grooved feed bush technology for higher output
  • Screw geomentry for HDPE & PP Pipe extruder.
  • Superior Physical Properties of end products
Models 45B 45B6 60B6 75B4 90B4
Extruder Drive(KW-AC) 45 75 132 160 200
L/D Ratio 30:1 30:1 30:1 30:1 30:1
Output In KG/HR 120 -140 200-240 370-400 450-500 600-700



Models 45-45 45-55 45-75 45-90 60-110 60-132
Extruder Drive(KW-AC) 45 55 75 90 110 132
L/D Ratio 37:1 37:1 37:1 37:1 37:1 37:1
Output In KG/HR 140-160 180-190 220-240 330-350 380-400 500-550
