Panchveer Engineering Offers Parallel Twin Screw And Single Screw Extruders And Downstreams For Manufacturing Plastic Pipes, Diameter From 16 To 800 Mm.
Other Engineering: PVC Pipe Machine | HDPE Pipe Coiler Unit | HDPE Pipe Die Head | High Speed Mixer Cooler | Pipe Cutter Machine | Profile Cutting Unit | PVC Pipe Printing Machine | Plastic Pipe Making Machine
Twin Screw Parallel Extruder
Features
Minimizes energy inputs
Achieves uniform pumping
Minimizes wear & tear
Economic replacement option
PID digital temperature controllers
High accuracy
Hard face coating on selected models
PLC controls as standard on select models
Extruder Models
PE-52/18-120
PE-52/22-150
PE-52/25-170 ... more
PVC Pipe Die Head
Die Head For macking PVC Pipe (RPVC die , UPVC die , CPVC die )
3 LAYER PVC PIPE DIE HEAD AVAILABLE
Features :
Accommodate a large range of pipe die in single die head ensuring less change over time & saving cost.
Geometric design of the dia offer distinct advantage during process.
Optimu ... more

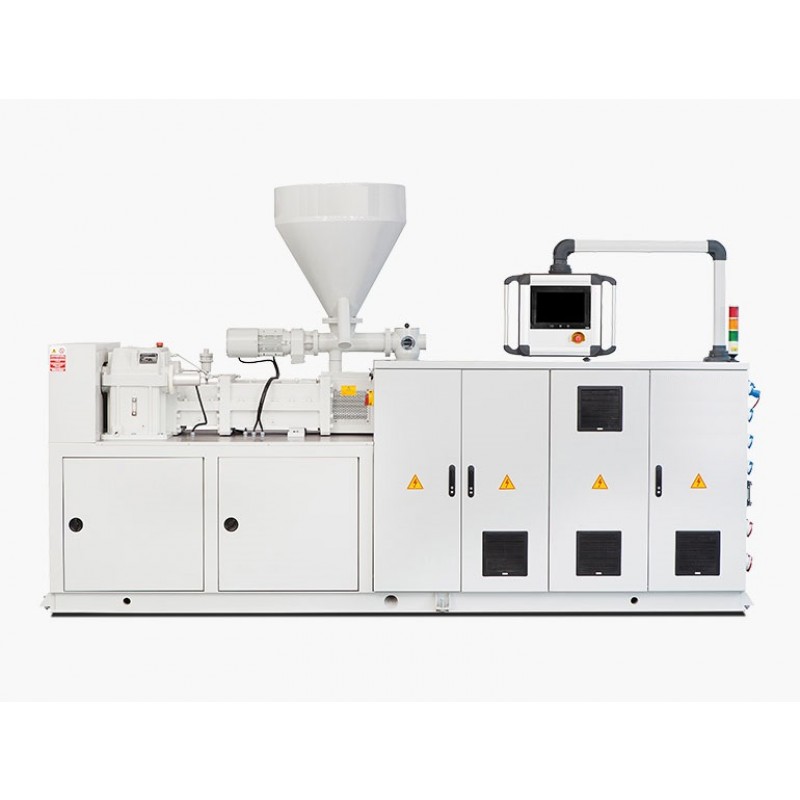

Twin Screw Conical For C PVC, PVC Pipe & PVC Profile
Conical Twin Screw Extruder types are an excellent choice for C PVC ,U PVC ,R PVC & PVC Profile Aplication
Features:
PLC control system and HMI touch screen control panel, or Digital display control instrument
Vertical type integrated gearbox, with high torque, accuracy and du ... more
CPVC Die Head
C PVC PIPE DIE HEAD
Models
RKL-1/200
RKL-2/400
RKL-3/600
Pipe Size Range (MM)
1/2" to 2"
2" to 4"
2" to 6"
Throughput (KG/HR)
200
400
600
Other Engineering: PVC Pipe Machine | HDPE Pipe Coiler Unit | HDPE Pipe Die Head | High Spee ... more
HDPE/PPR Pipe Single Screw Extruder
Features :
Barrier Screw high homogeneous plasticizing.
Grooved feed bush technology for higher output
Screw geomentry for HDPE & PP Pipe extruder.
Superior Physical Properties of end products
Models
45B
45B6
60B6
75B4
90B4
Extruder Drive(KW-AC)
45
75
132
160
200
L/D Ratio
30:1
30:1
30: ... more
HDPE Pipe Die Head
Head For HDPE Pipe & PPR Pipe
(Single Layer, Two Layer and Three Layer up to 315 Dia)
Features :
Low pressure build up & Low melt temp. even with high throughput.
Good homogenization, Excellent wall thickness
Constant processing charasteristic over the full range of material
Consistent pro ... more

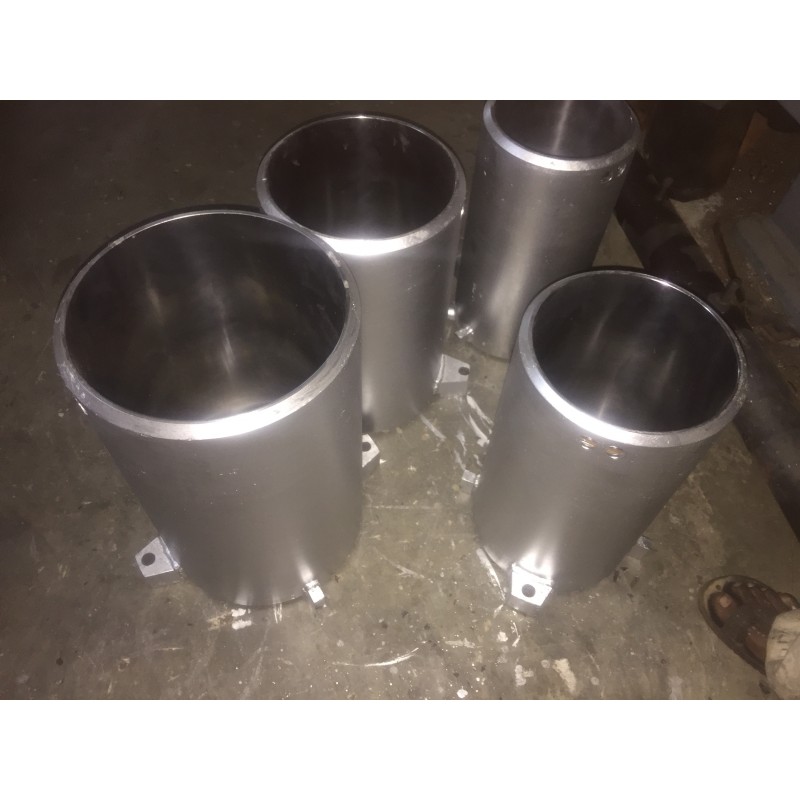

Tools & Sizer For Die Head
Other Engineering: PVC Pipe Machine | HDPE Pipe Coiler Unit | HDPE Pipe Die Head | High Speed Mixer Cooler | Pipe Cutter Machine | Profile Cutting Unit | PVC Pipe Printing Machine | Plastic Pipe Making Machine ... more
Vacuum Tank & Calibration Tank
We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 10 to 1000mm. All of our tanks are built in stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.
Feat ... more
Cooling Tank
Panchveer Engineering offers cooling tanks for the cooling process of plastic pipes, diameter from 16 to 800 mm. We provide efficient, reliable and durable solutions to our customer’s needs.
Features
Stainless steel tank
Low maintenance cost
Product Range
Diameters from 16 to 800 mm
Vacuum ... more
Caterpillar Haul-off Units
Features
Pneumatic Clamping - ease in set up and efficient traction.
Ease of Maintenance due to mechanical power distribution eliminated
Models
PH 110
PH 250
PH 250-4
PH 400-4
PH 250-6
PH 450-6
PH 630-6
Pipe Diameter
20-110
63-250
50-250
90-400
63-250
110-450
250-630
No. of Caterpillers
2
2 ... more
Pipe Cutting Units
Upstrocke Cutting Saw - HDPE / PVC
Flush Mounted type.
Suitable for smallar pipe ODs.
Cutting at higher speeds-Economical
Chip Extraction arrange available.
Models Upstrocke Cutter
PCR 63
PCR 110
PCR 200
PCR 250
PCR 315
Pipe Diameter Range (MM)
16-63
20-110
40 - 200
75-250
75-315
Max. S ... more
Tilting Table
Features
Table material is stainless steel
Tilting system is pneumatic
Product Range
Length is 6 mt on standard
Length can be modified upon request
Depending on profile geometry, we can also offer roller-type tables
Other Engineering: PVC Pipe Machine | HDPE Pipe Coiler Uni ... more
