Twin Screw Conical For C PVC, PVC Pipe & PVC Profile

Inquiry Now

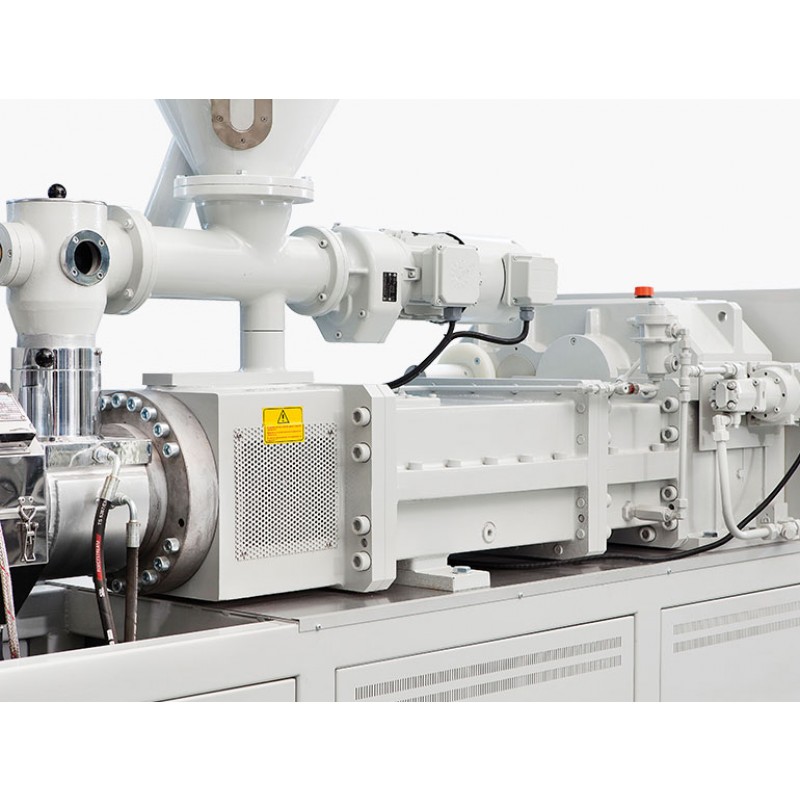

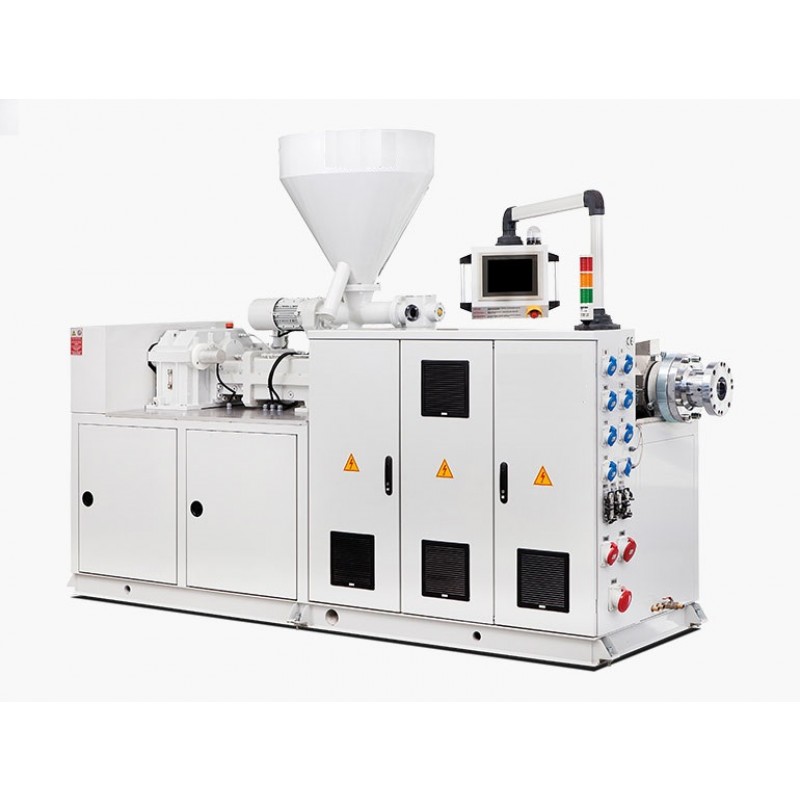

Conical Twin Screw Extruder types are an excellent choice for  C PVC ,U PVC ,R PVC & PVC Profile  Aplication



Features:

PLC control system and HMI touch screen control panel, or Digital display control instrument

Vertical type integrated gearbox, with high torque, accuracy and durable performance.

Equipped with degassing zone

Optimized double screw material feeding system for stable production of PVC powder

Conical screw and barrel

Screw inner temperature controlled by thermo oil pump system, barrel with air cooling and water cooling system

Specifics

Superb Melt Homogeneity
Synchronisation speed for main drive, starve feeder and hauloff
Smaller footprint thanks to reduced length
Low maintenance with higher output
Less screws/barrels replacement problem to give optimum productivity
Wide range of application

Twin Screw Conical Extruders

MODEL               PE C45  PE C51   PEC55    PE C65  PE C80  PE C92
Screw Counter Rotating 45/100 51/105 55/110 65/132 80/156 92/188
Max. Speed (rpm) 45 45 37 38 38 36
Torque (NM) 1972 2779 3820 4518 6786 13130
Barrel Heater (Kw) 12.5 13 22 24 36 55
Barrel Cooling Zone 2 2 3 3 3 3
Motor Drive (kW) 15 18.5 22 37 55 110
Starve Feeder (kW) 0,75 1,1 1,1 1,5 2,2 2,2
Vacuum Pump (kW) 0.75 1.5 1.5 1.5 2.2 2.2
Vacuum Collector Type 1-Tank 1-Tank 1-Tank 1-Tank 1-Tank 1-Tank
Output Capacity-Pipe 100-110 100-120 130-150 250-280 400-450 750-850
Output Capacity-Profile 60-70 60-80 100-120 220-250 380-400 650-700
